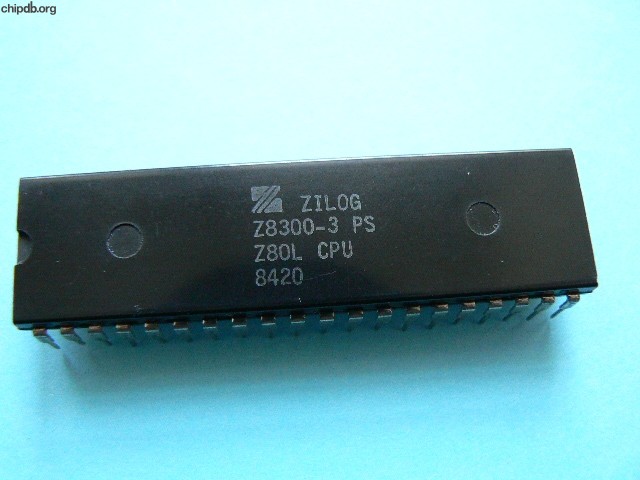

Zilog Z8300-3 PS


Zilog Z8300-3 PS

Zilog Z8300-3 PS
Notes:Z8300 = Z80L (Low power)

The Z80 CPU with extremely low power consumption :

Z8300-3 : 2.5 MHz clock, 25 mA typical current consumption.

Package P : Plastic DIP
Temperature S : 0 °C to 70 °C
Keywords:
Date: 12.02.2008 21:45
Photo contributed by: Frede44
